GEARS

CYCLODIAL GEAR


Cycloidal gears also experience lower friction and less wear on the tooth flanks due to their rolling contact and lower Hertzian contact stress. And their good torsional stiffness and capacity to withstand shock loads make them ideal for heavy industrial applications that also require servo precision and stiffness.

DOUBLE HELICAL GEAR


A double helical gear incorporates two opposite orientated helical gears of the same helix angle together such that the two opposing thrust forces annihilates one another.

ELLIPTICAL GEAR


Elliptical gears are mostly needed by manufacturers of automatic machines, especially in the printing and textile industry. Sometimes the rotation speed of a shaft, pusher, blade, sealer needs to be changed within the same turn.

HELICAL GEAR


Helical gears are used increasingly often as power transmitting gears, since not only can they carry larger loads because of their lower dynamic load but also their noise and vibration levels in operation are lower compared with those of spur gears.

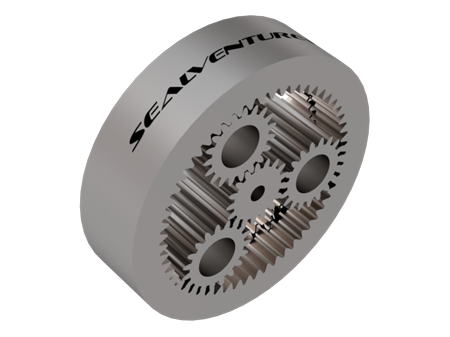

INTERNAL GEAR


Gears are used for the transmission of power. Internal Gears are gear teeth generated in the internal diameter of a cylinder while external gears have the gear teeth generated on the outside diameter of the component.

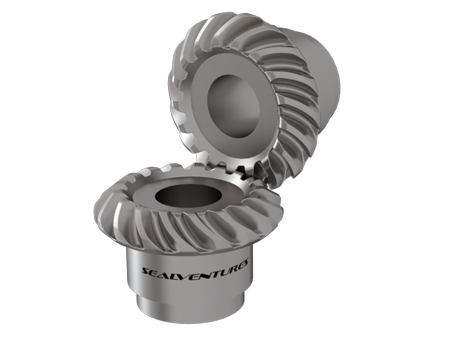

MITRE GEAR


The shafts are positioned at right angles from each other, and the gears have matching pitch surfaces and angles, with a conically-shaped pitch surface. Mitre gears are useful for transmitting rotational motion at a 90-degree angle with a 1:1 ratio.

PINION HELICAL GEAR


Pinion Helical is the most commonly used gear in transmissions. They also generate large amounts of thrust and use bearings to help support the thrust load. Helical gears can be used to adjust the rotation angle by 90 deg. when mounted on perpendicular shafts.

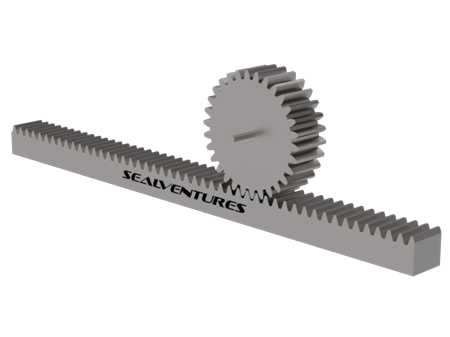

RACK AND PINION GEAR


Rack and pinion gears are used to convert rotation into linear motion. The flat, toothed part is the rack and the gear is the pinion. A piston coaxial to the rack provides hydraulic assistance force, and an open centered rotary valve controls the assist level. A rack and pinion gears system is composed of two gears.

SPIRAL BEVEL GEAR


A spiral bevel gear is a bevel gear with helical teeth. The main application of this is in a vehicle differential, where the direction of drive from the drive shaft must be turned 90 degrees to drive the wheels.

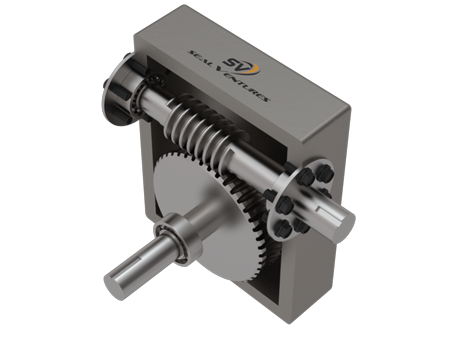

WORM GEAR


Worm gears are the most compact type of system and provide high-ratio speed reduction. They are often the preferred type of gearing system when space is limited and large gear reductions are needed. Worm gears can be used to either greatly increase torque or greatly reduce speed.

QUALITY ASSURED

At Sealventures India Private Limited, we maintain quality management system with strong emphasis on the continuous improvement quality, engineering, manufacturing & business process.
